Import Bill of Materials from CSV/Excel file
This module useful to import bill of materials from CSV/Excel file.
Related Module
All In One Import - Partner, Product, Sales, Purchase, Accounts, Inventory, BOM, CRM, Project (Advance Module)
All In One Basic Import - Partner, Product, Sales, Purchase, Accounts, Inventory (Related Module)
Features
- Easy to import.
- import csv or excel.
- import product by Name, Barcode, Internal Reference.
- Very well formated Excel and CSV files.
- Easy to install and use it, No more configuration required.
- This module saves your important time.
v 13.0.2

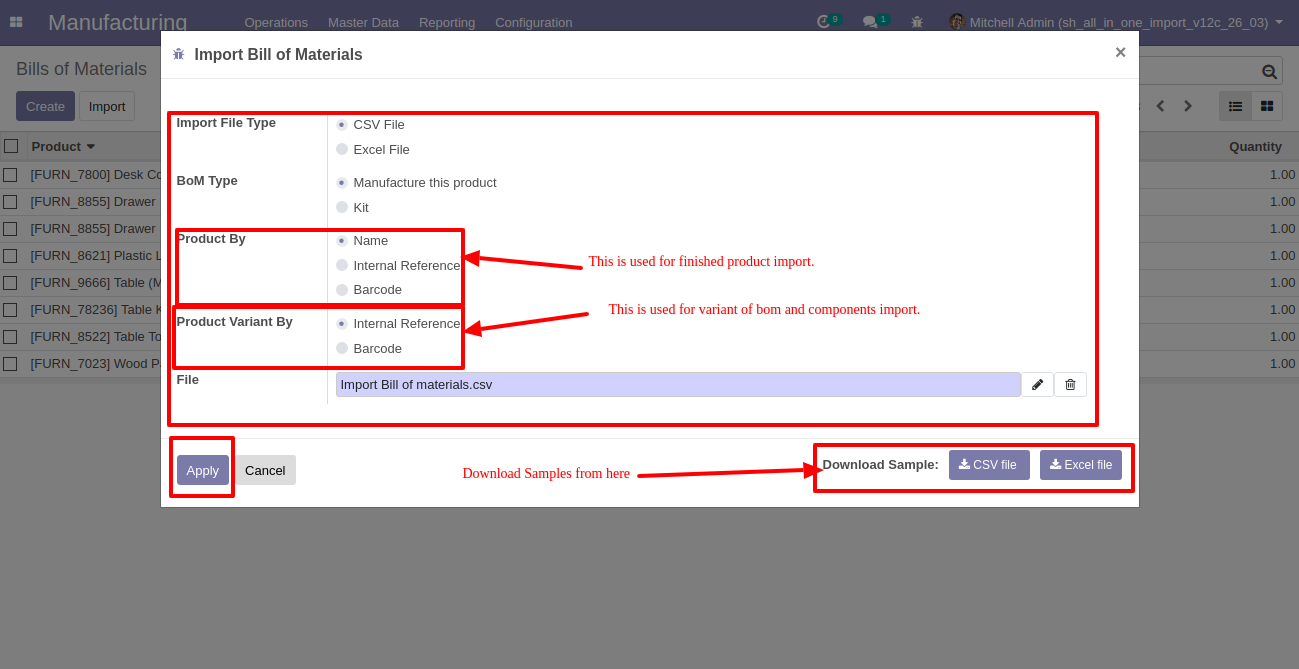

When you click the "Import Bill of Materials" menu, the wizard will open that looks like below, here you can import product variants also when import bill of materials.

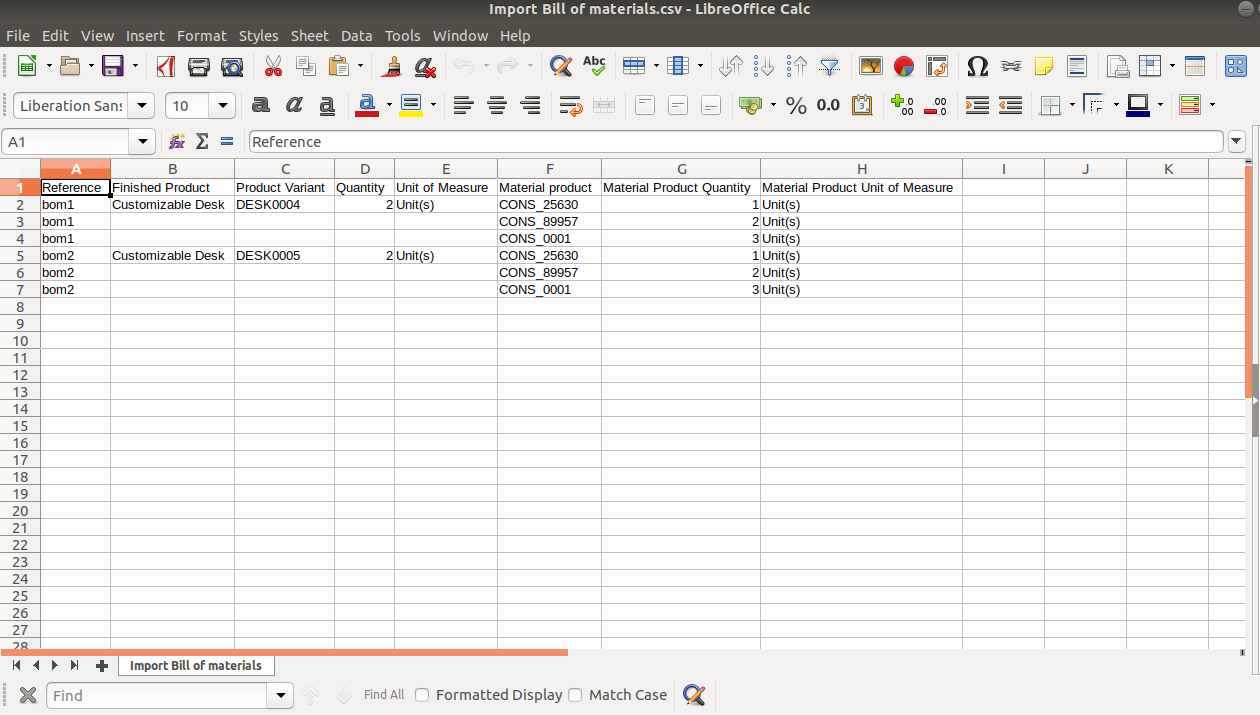

Your CSV file format must match like below.

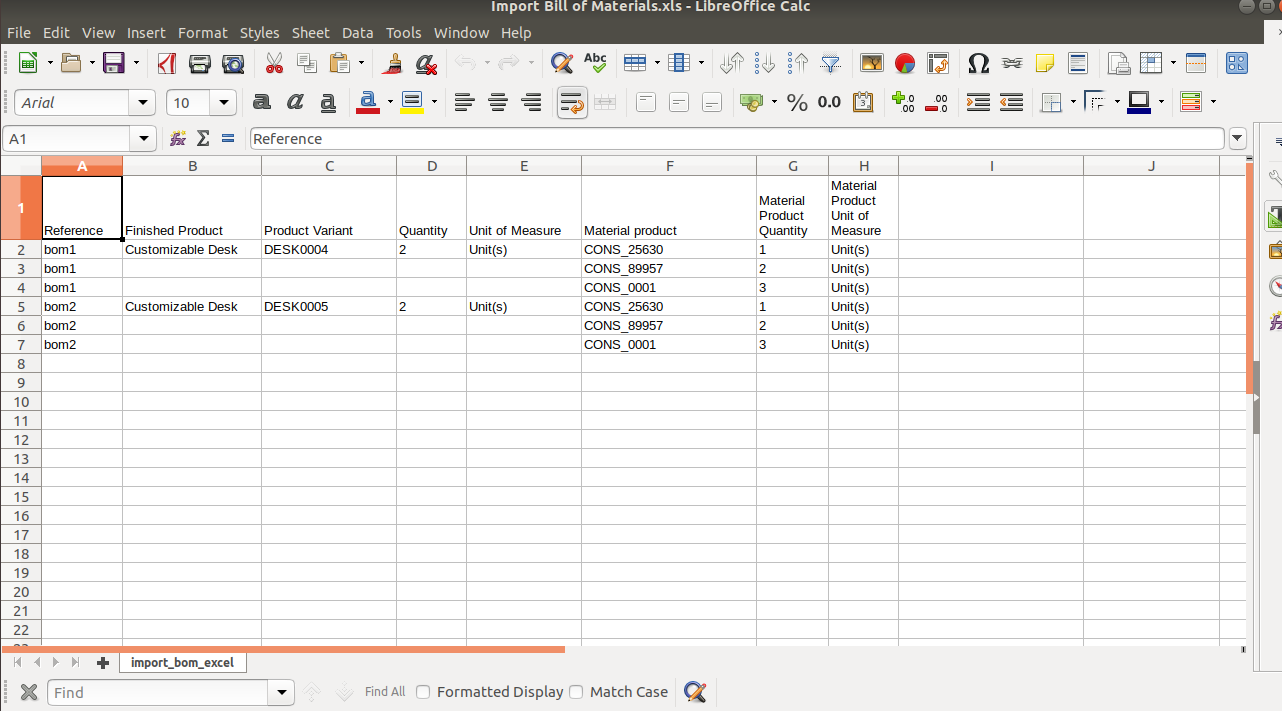

Your Excel file format must match like below.
v 13.0.1

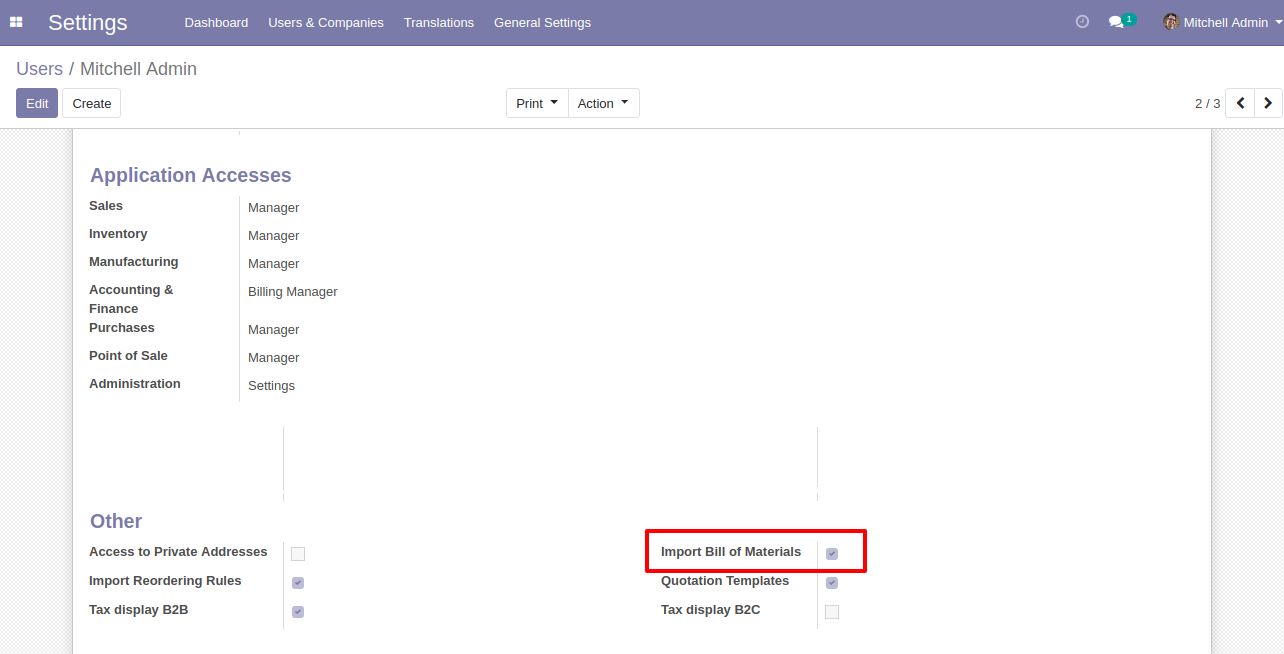

First you need to tick "Import Bill of Materials" group in order to import Bill of Materials.

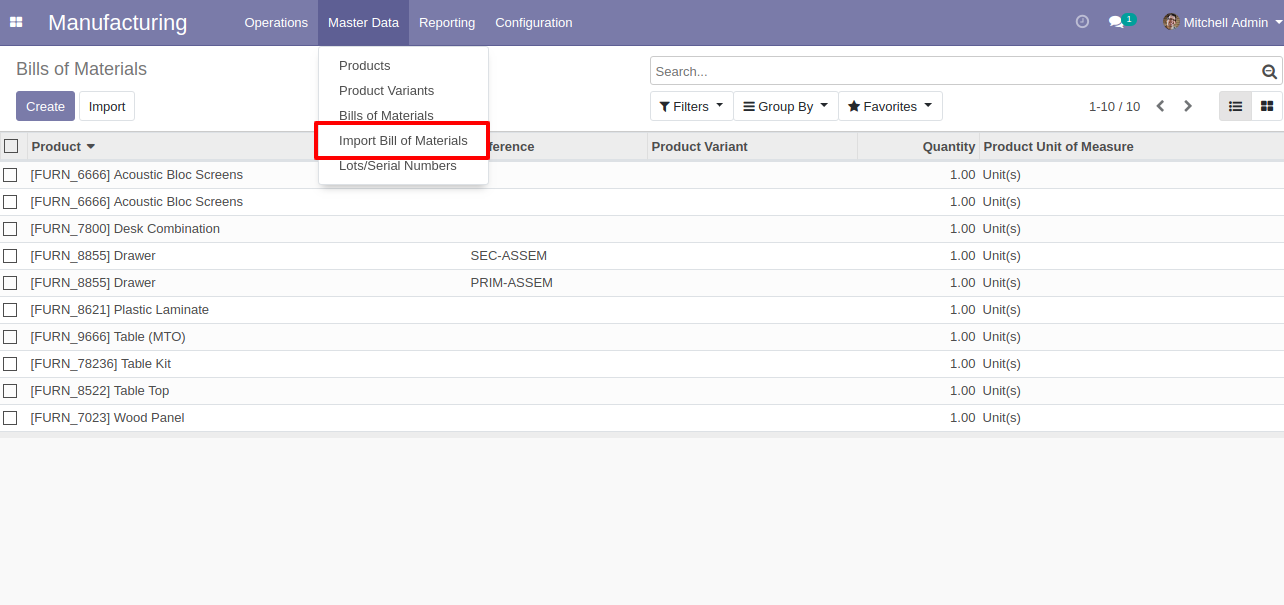

"Import Bill of Materials" menu in master data

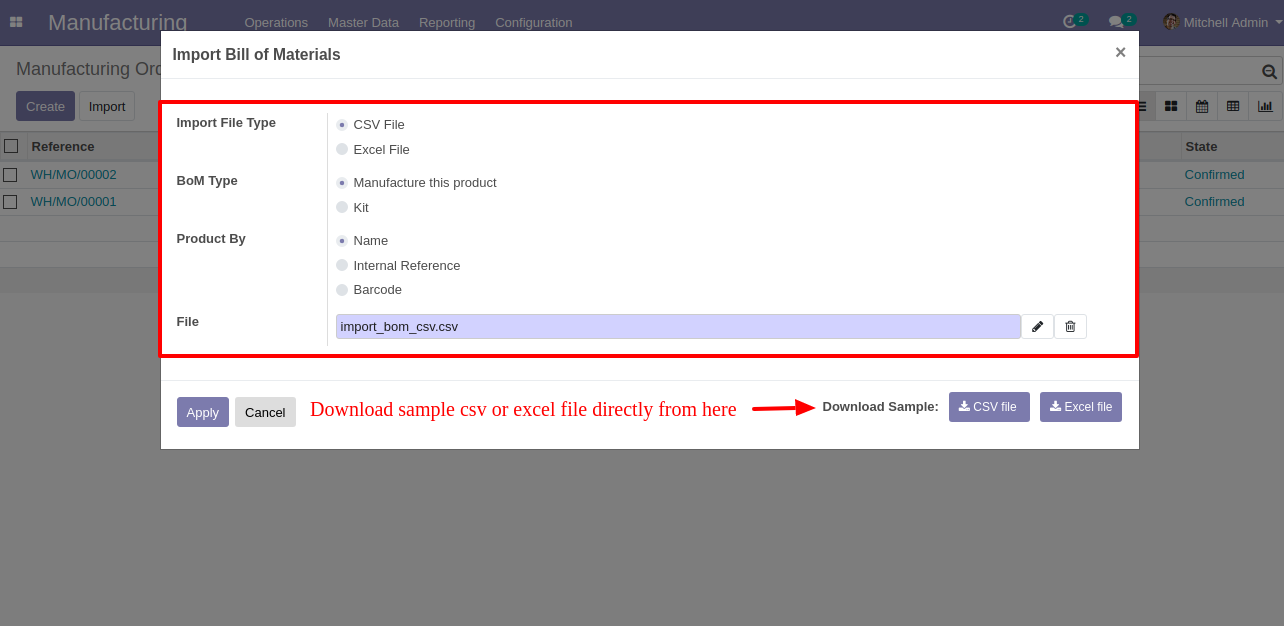

When you click "Import Bill of Materials" menu, wizard will open that looks like below

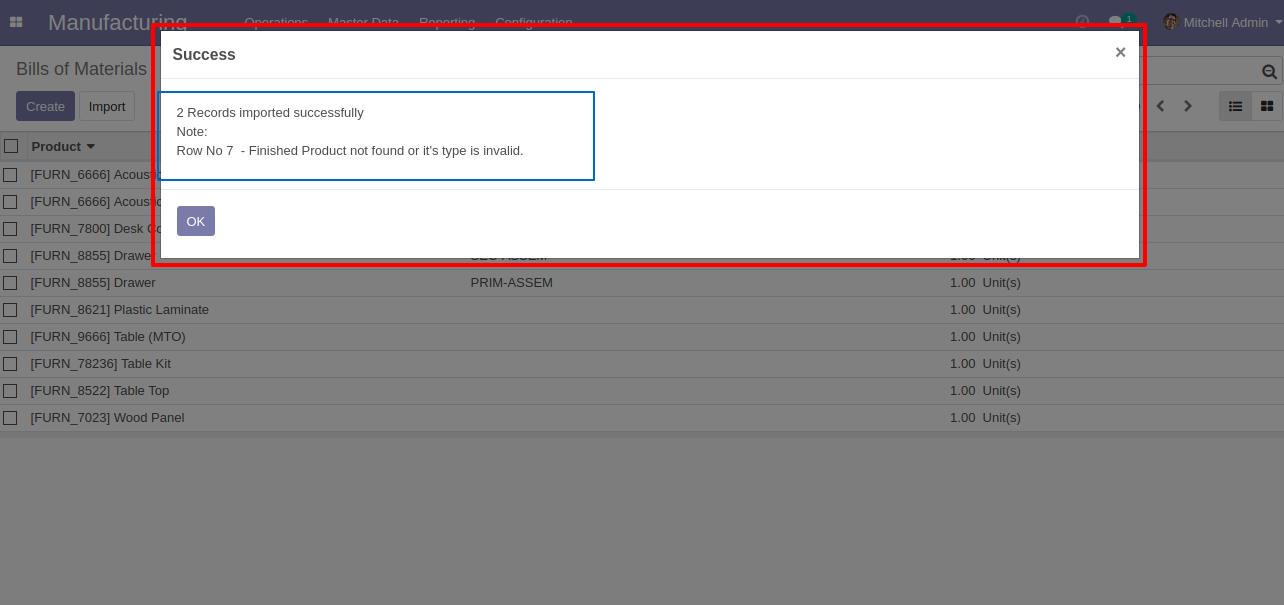

Success message looks like below it's shows successfully imported records and also provides list of unimported records with row number in sheet and relative details of data invalidation.
following fields are imported.
About Fields
| Column | Mrp Model | Field Name | Description | Required |
|---|---|---|---|---|
| A | Bill Of Materials (mrp.bom) | Reference | You have to enter the product internal reference number. | No |
| B | Bill Of Materials (mrp.bom) | Product | Define the product name. | Yes |
| C | Bill Of Materials (mrp.bom) | Product variant | Define the product variant. | No |
| D | Bill Of Materials (mrp.bom) | Quantity | You have to enter the product quantity. | Yes |
| E | Bill Of Materials (mrp.bom) | Unit of Measure | Take the same name as ERP in the "UOM". | No |
| F | Bill Of Materials (mrp.bom) | Material Product | Define the Material of product name. | no |
| G | Bill Of Materials (mrp.bom) | Material Product Quantity | You have to enter the product quantity. | No |
| H | Bill Of Materials (mrp.bom) | Material Product Unit of Measure | Take the same name as ERP in the "UOM". | No |
General Notes:
1)
Don't
remove
the
column
from
the
sample
sheet
given,
you
can
leave
an
empty
column
if
the
column
is
not
the
required
type.
You
can
see
the
table
above
for
that.
2)
Don't
change
the
sample
sheet
column
sequence.
3)
Please
don't
use
excel
if
you
don't
know
the
very
well
sheet
formatting
which
is
given
in
the
sample
sheet.
Use
CSV
for
hassle-free
import
without
format
issue.
If
you
want
to
use
excel
and
want
to
clear
the
format
then
please
check
this
video.

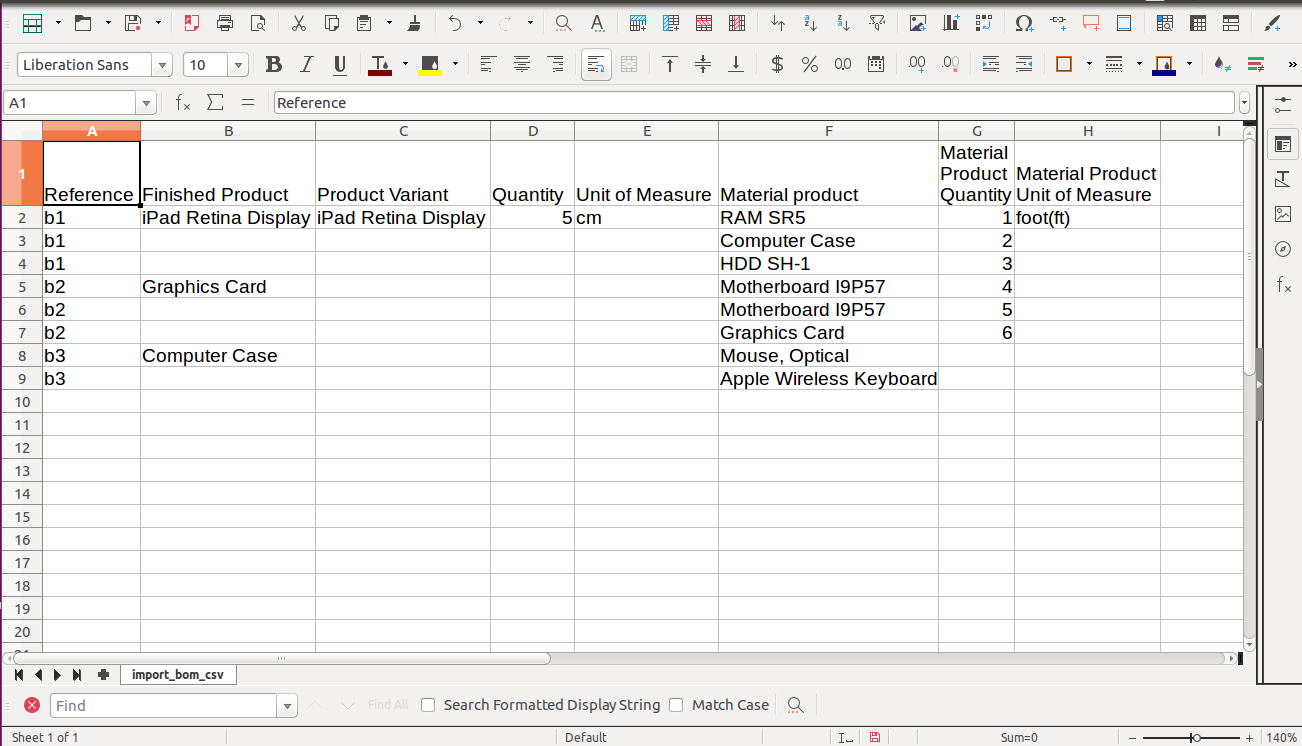

Your CSV file format must match like below.

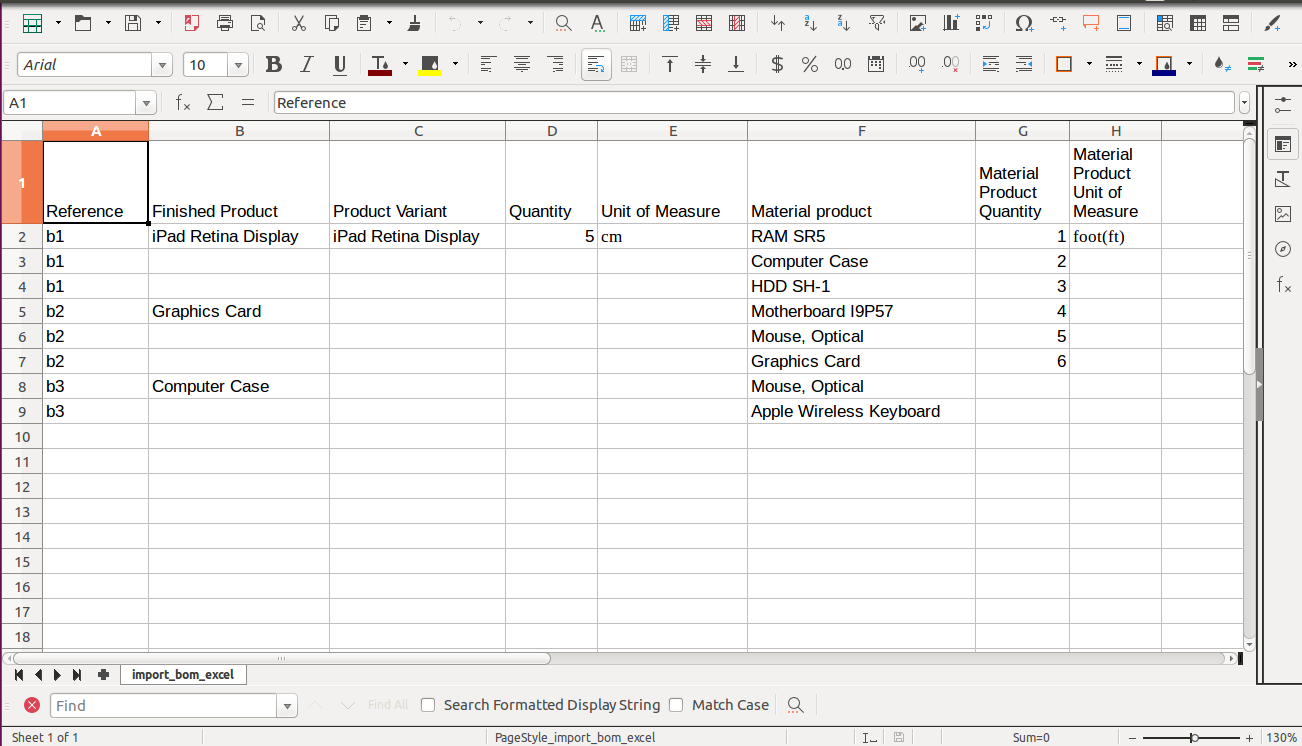

Your Excel file format must match like below.
Version 13.0.2 | Released on : 2nd April 2021
- New You can import product variants by internal reference number and barcode.
Version 13.0.1 | Released on : 19th October 2019
- Initial Release
